MLM-1 SoM

MLM-1 SoM#

Product Summary#

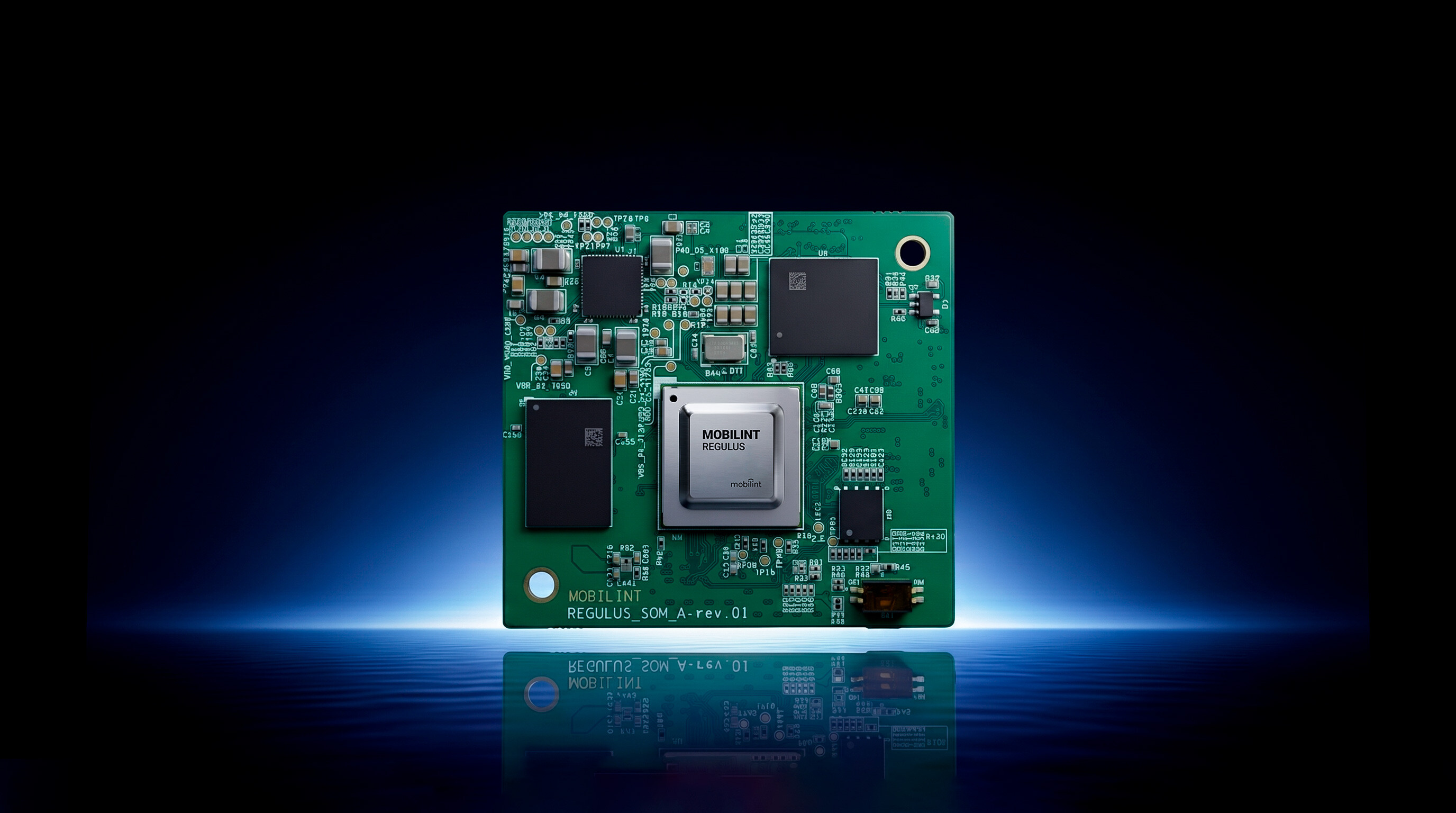

MLM-1 SoM

The MLM-1 SoM is a system-on-module powered by Mobilint’s REGULUS AI SoC. It integrates the NPU, CPU, ISP, video codec, memory, and storage on a single 55 × 50 mm board, and delivers 10 TOPS (INT8) of AI inference performance at a 3 W TDP.

MLM-1 SoM is designed for products that build AI into size- and power-constrained devices. The module runs from a single 5 V input and connects to the product board through three 100-pin connectors.

Hardware (Host System) Prerequisites#

MLM-1 SoM is a carrier-dependent module. It needs a carrier board that supplies power and brings out the I/O the application uses.

  • Carrier board with three 100-pin connectors (J1, J2, J3) that mate with the module

  • 5 V power input to the module

To evaluate the module before designing a custom carrier board, use the REGULUS AI EVK, which combines MLM-1 SoM with an official carrier board. Software and compiled models validated on the EVK carry over to a custom carrier board without changes.

Software Prerequisites#

MLM-1 SoM runs Linux on its quad-core ARM Cortex-A53 CPU, with Mobilint’s SDK qb modules preloaded. Applications, including those that use the Vision DSP, run directly on the module.

Note

For environments outside the officially supported configurations, please contact us at https://discuss.mobilint.com.
