ARIES MLA100 Mobile Express Module (MXM)

ARIES MLA100 Mobile Express Module (MXM)#

Product Summary#

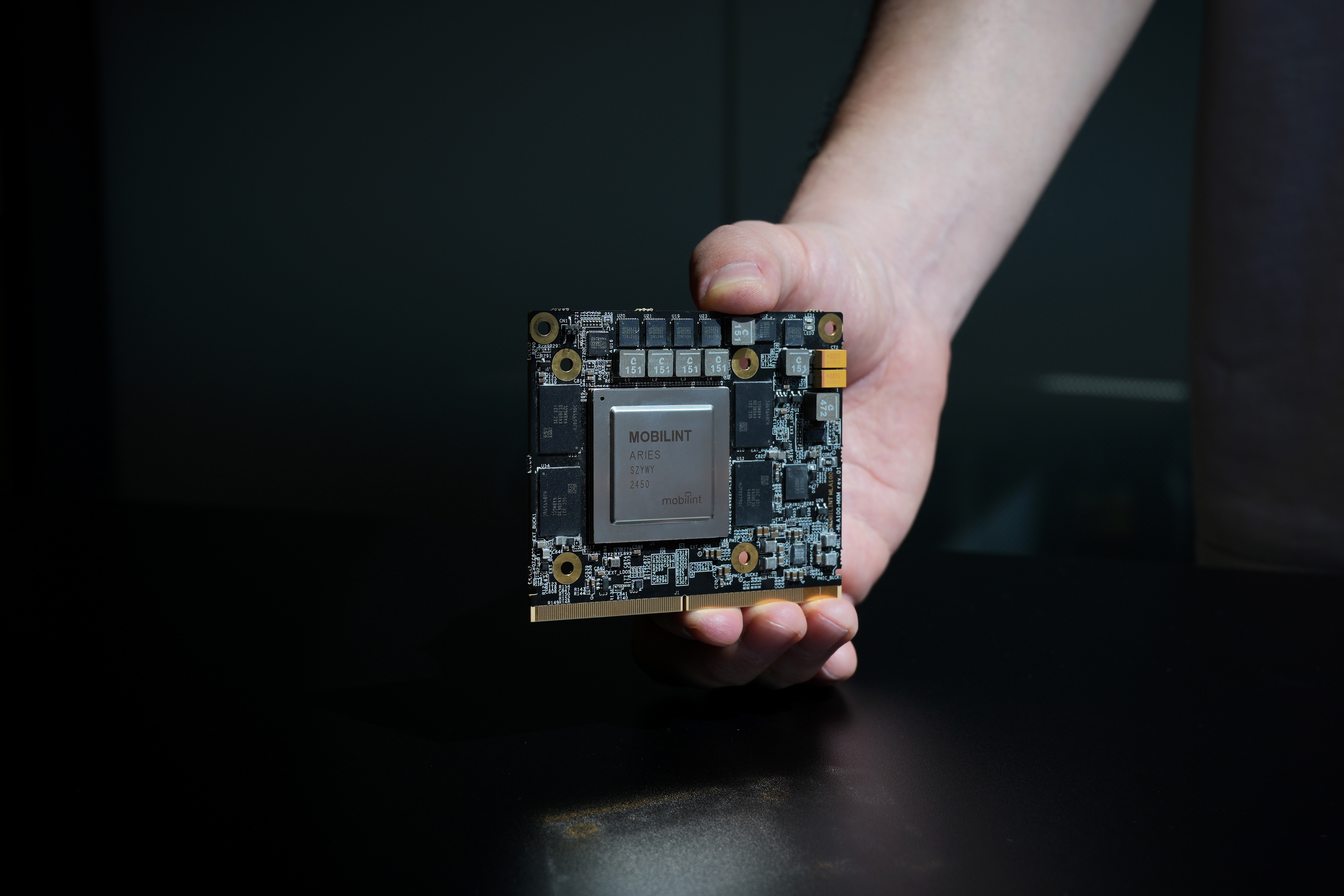

MLA100 MXM Module

MLA100 MXM is an embedded AI module powered by Mobilint’s ARIES NPU. It delivers up to 80 TOPS of AI inference performance at just 25W, making it ideal for real-time, low-latency AI workloads on edge AI PCs and embedded systems.

MLA100 MXM uses the MXM 3.1 Type A form factor and is designed to integrate into AI edge systems that require compact size, low power draw, and fully on-premise AI acceleration.

Hardware (Host System) Prerequisites#

MLA100 MXM is a host-dependent module. You’ll need a compatible carrier board or host system to interact with the module and power the module.

  • MXM 3.1 Type A slot with full PCIe connectivity

  • Board/chassis OS support for driver deployment

Software Prerequisites#

Operating System

  • x86-64 and aarch64 architectures

  • Ubuntu 22.04.5 LTS (official reference environment)

  • Ubuntu 20.04 LTS

  • Windows 10 / 11 (Build 19041 or later)

  • Other Linux distributions based on x86-64 or aarch64 architectures may also be supported.

To use the Python interface, Python must be installed in the system.

Note

For environments outside the officially supported configurations, please contact us at https://discuss.mobilint.com.
