REGULUS System-on-Module (SoM)

REGULUS System-on-Module (SoM)#

Product Summary#

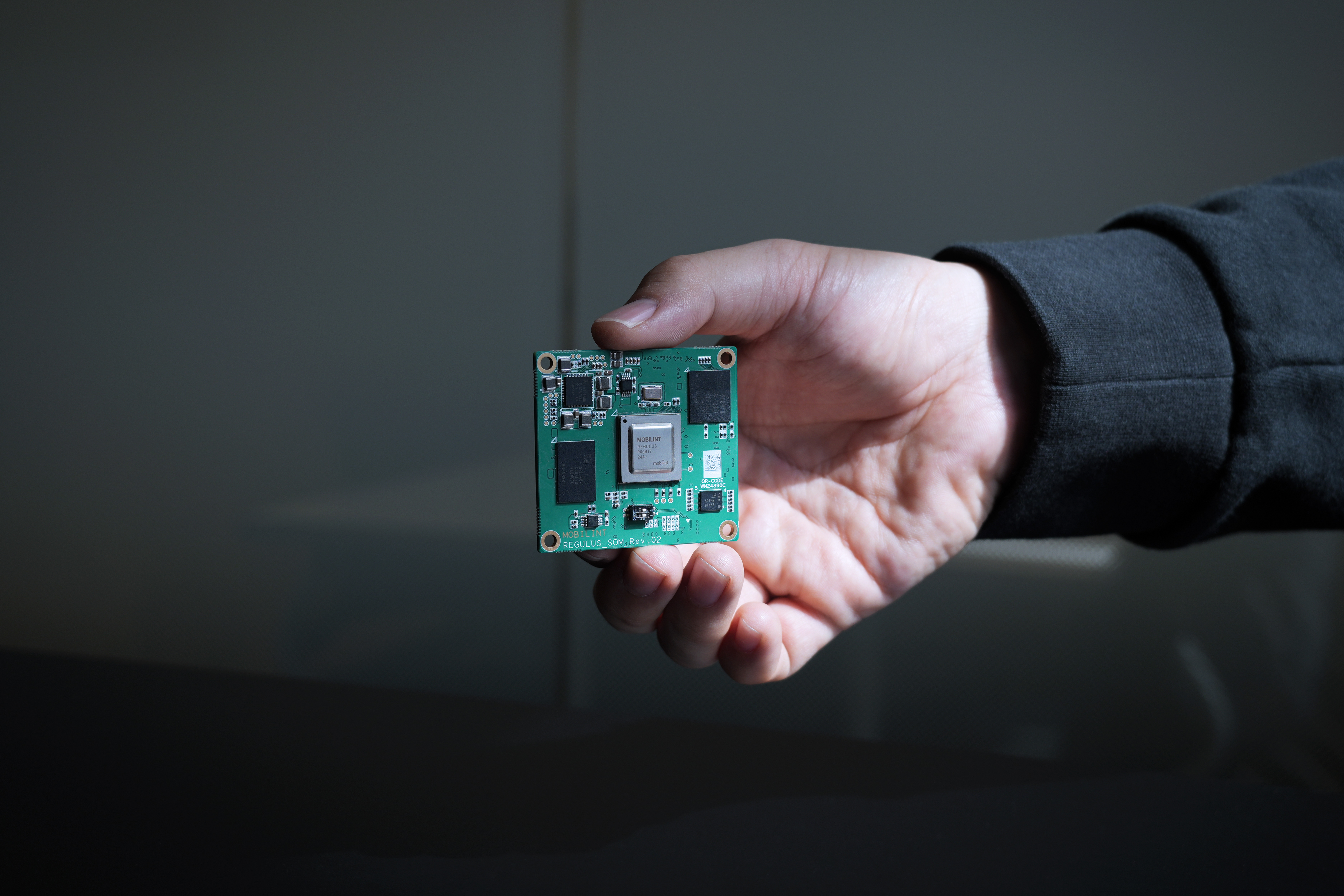

REGULUS System-on-Module (SoM)

REGULUS is a compact AI System-on-Chip (SoC) with 10 TOPS of computing power at under 3W of power, optimized for higher-performance on-device AI use cases in power- and space-constrained applications such as drones and security systems.

REGULUS comes pre-equipped on a system-on-module (SoM) board, making it a fully functioning AI PC in itself.

Programs for REGULUS are built in a cross-compilation environment and run on the module’s ARM CPU. See (Basic) Running Pre-Compiled ResNet50 for the cross-compilation workflow.

Identifying the Hardware Revision#

REGULUS ships in different hardware revisions — regulus-ra and regulus-rb. Run the following on the device to check its revision:

regulus-version 2>/dev/null | awk -F': *' '/^HW Revision/{print $2; found=1} END{if(!found) print "regulus-ra"}'

You can also identify the revision from the board silkscreen markings.

regulus-ra#

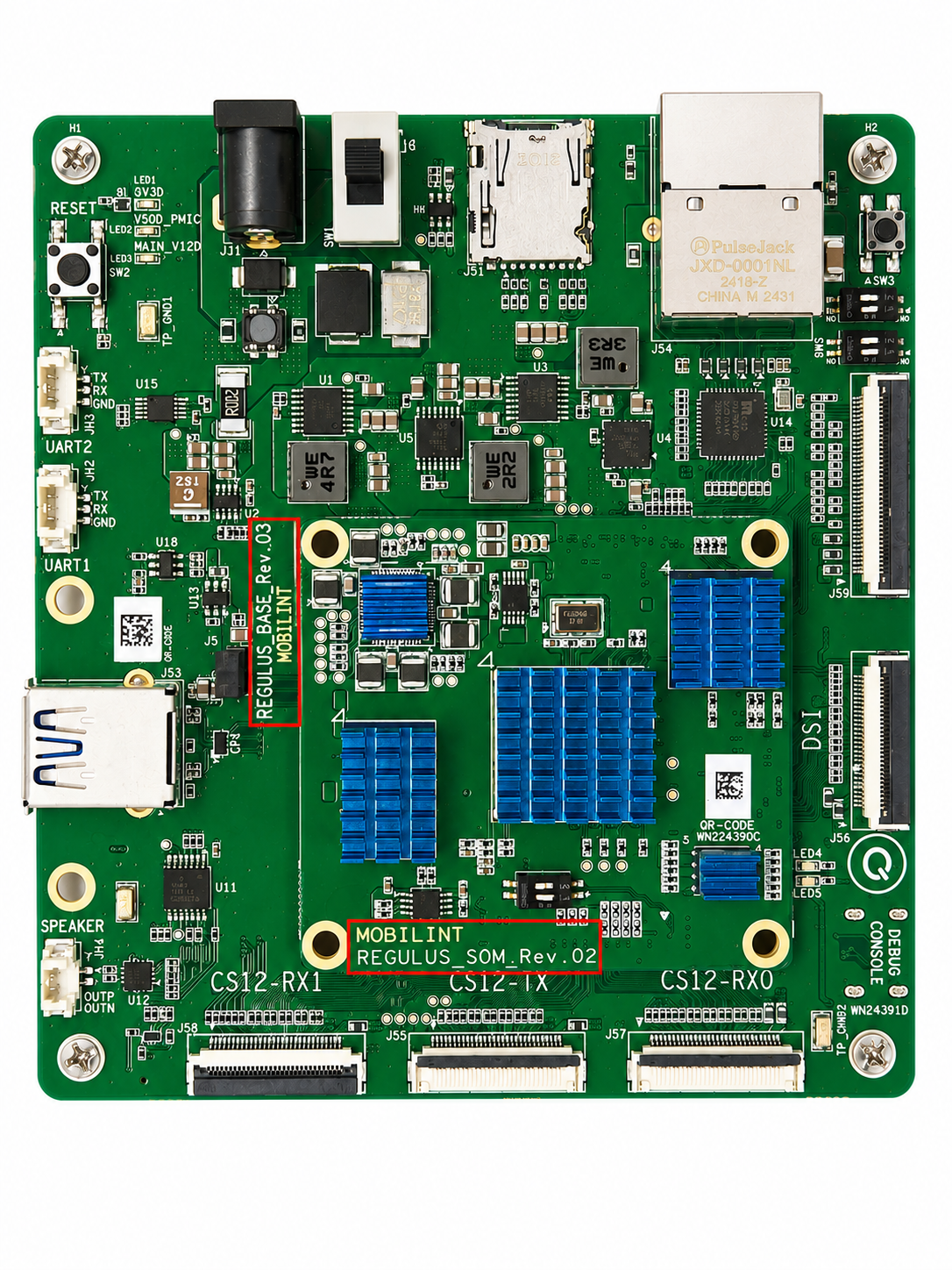

regulus-ra board

  • SOM board: REGULUS_SOM_Rev.02

  • Base board: REGULUS_BASE_Rev.02 or REGULUS_BASE_Rev.03

regulus-rb#

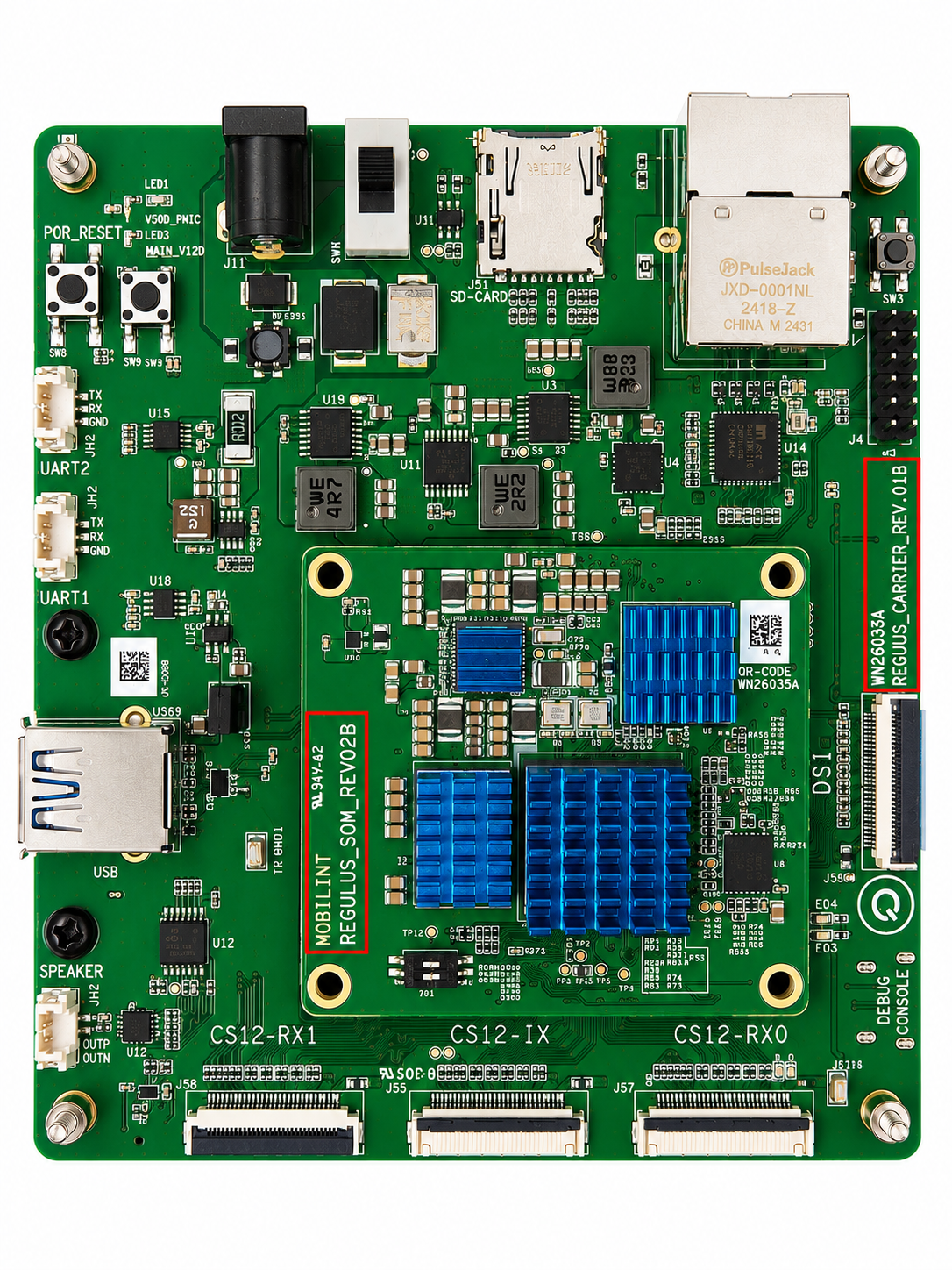

regulus-rb board

  • Target board : regulus-evk-rev01

  • SOM board: REGULUS_SOM_REV01B or REGULUS_SOM_REV02B

  • Carrier board: REGULUS_CARRIER_REV.01B
