Utility Usage#

This document provides information about utility tools that can be used to check the status of the Mobilint NPU or perform tests.

Linux-Specific Utilities#

Mobilint provides two types of utility tools for Linux/Ubuntu environments:

  • mobilint-cli: Command-line utility for checking NPU status, running benchmarks, and viewing MXQ information.

  • mobilint-runtime-gui: A GUI-based utility that enables users to easily run and test various AI models on the NPU without writing any code.

mobilint-cli#

  • Checking NPU Status

    mobilint-cli status

    • -L or --list-npus : Lists all NPU devices installed on the system.

    • -i {device_id} or --id {device_id} : Shows the status of specific NPU device identified by {device_id}. {device_id} corresponds to the number in /dev/aries*.

    • -l {second} or --loop {second} : Continuously shows the device status every {second} seconds. If the -i or --id option is omitted, default device is device 0.

    • -m {milli_sec} or --loop-ms {milli-sec} : Same as the -l option, but with a millisecond interval.

    • -f {file_name} or --file {file_name} : Saves the device status to the file {file_name}.

  • MXQ File status

    mobilint-cli mxqtool

    • show {mxq_path} : Shows information about the MXQ file located at {mxq_path}.

    • extract {mxq_path} {dir_path} : Extracts the content from the MXQ file at {mxq_file}, including bundled files, and saves them to {dir_path} directory.

    • collect {dir_path} {mxq_path} : Reconstructs a new MXQ file at {mxq_path} based on the content of {dir_path}, which was extracted using the extract option.

  • Inference Testing

    mobilint-cli testinfer

    • --repeat-count {num} : Repeats inference {num} times.

    • --core-mode {mode} : Specifies the core mode to use during inference. (You must use mode that you specified at compile stage.)

    • --mxq-path {mxq_path} : Inference MXQ model located in {mxq_path}.

    • --summary : Prints internal information conatained in mxq file specified by --mxq-path option.

    • For additional options, please refer to --help option.

  • Benchmark

    moblint-cli benchmark

    Note

    mobilint-cli benchmark command currently only support vision models.

    • -p {mxq_path} or --mxq-path {mxq_path} : Using MXQ file located at {mxq_path}.

    • -t {second} or --time {second} : Performs benchmark test for {second} seconds.

    • For additional options, please refer to --help option.

mobilint-runtime-gui#

  1. Start GUI server

    In the terminal, run following command to start the GUI server.

    mobilint-runtime-gui

    If the server starts successfully, an access URL will be displayed in the red box area, as shown below (e.g., “http://127.0.0.1:5000”).

    runtime-gui_usage

  2. Open in the Web browser

    Copy the URL shown in the message, then paste it into your web browser’s address bar to connect.

  3. Use GUI

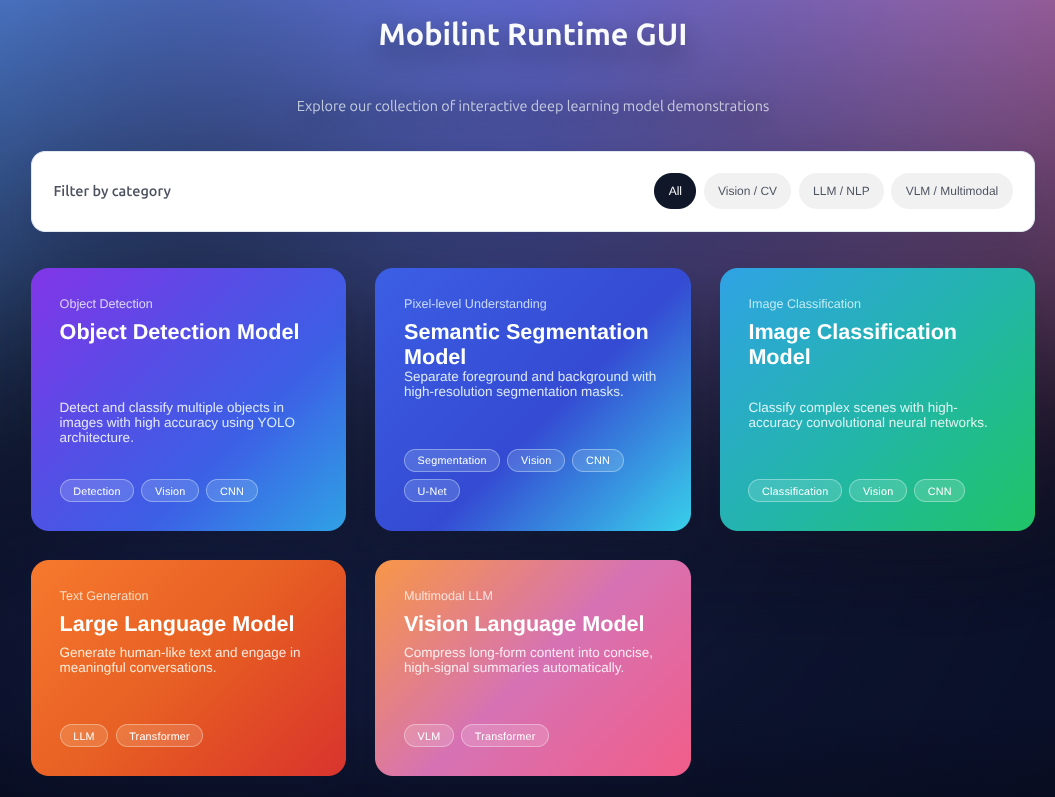

    One the connection is successful, the GUI page will appear as shown below.

    runtime-gui_sceenshot

  4. Stop the server

    To exit, go back to the terminal where the server is running and press “Ctrl + C” to stop the GUI server.

Windows, Linux Common Utilities#

  • aries_flash_firmware: A CLI-based utility that can update NPU firmware.

  • mobilint_ctrl: GUI utility to check NPU status and update firmware.

aries_flash_firmware#

  • Available command descriptions

> aries_flash_firmware

Flash firmware for Aries. v0.5 (build #348 date : 31 December 2025)
Usage: aries_flash_firmware  [--help] [-f|--force] [-s|--supress_info] [-i|--id=device_id] [-t input_value] firmware_file

      --help                display this help and exit
  -f, --force               Force to flash without validation check.
  -s, --supress_info        Suppressed information.
  -i, --id=device_id        Device ID. (default : 0)
  -t input_value            Extra input value for special command.
  firmware_file             Input firmware file name(.gpt) or command.

                            ** Special command ** ([] <= with 'input_value')
                            status     : Get current device status [to file]
                            info       : Get firmware information [from file]
                            device     : List up all devices
                            list       : List up all firmware release
                            download   : Download latest/[Specific] firmware
                            update     : Update latest/[Specific] firmware
                            product    : Show product management information

  1. Get installed card status

aries_flash_firmware status [-i device_id]

> aries_flash_firmware status
* PCIe Device Driver connection details.
        > Driver version : 1.6.229 (Revision 0)
        > PCIe card connection information.
                 - Main-System(VID:0x209F,DID:0x0000), Sub-System(VID:0x0402,DID:0x1093), PCIe 4.0 - 8 Lanes
        Device type   : Aries 2 (Firmware rev. 0)
        Product type  : Commercial
        Board type    : Low profile
        DRAM size     : 16 GB

*I: Current firmware.
    - Reading Board [==================================================] Done.
        BSP           : aries-mla100-32Gb
        Product name  : MLA100 LowProfile 16GB
        Version       : v1.2.2 rev.0 (Build date : 2025-08-12 17:01:48 KST)
        Configuration : master(26c3edab) release
        SHA256 check  : Ok!

*I: The firmware is already up to date.

  1. Get all devices’ information

> aries_flash_firmware device
*** Device list. ***

   Device #0 (\\.\mobilint_pcie)
        - Aries 2 Low profile 16 GB (Firmware v1.2.4[rev.0], Commercial)

*I: Total 1 device is found.

  1. Firmware update via on-line

Note

A system reboot is required after updating the firmware.

>aries_flash_firmware update
* PCIe Device Driver connection details.
        > Driver version : 1.8.0 (Revision 2)
        > PCIe card connection information.
                 - Main-System(VID:0x209F,DID:0x0000), Sub-System(VID:0x0402,DID:0x1093), PCIe 4.0 - 8 Lanes
        Device type   : Aries 2 (Firmware v1.2.4 rev#0)
        Product type  : Commercial
        Board type    : Low profile
        DRAM size     : 16 GB

*I: Current firmware.
    - Reading Board [==================================================] Done.
        BSP           : aries-mla100
        Product name  : MLA100 LowProfile
        Version       : v1.2.4 rev.0 (Build date : 2026-02-03 14:06:23 KST)
        Configuration : HEAD(10944bc7) release
        SHA256 check  : Ok!

*I: No need to update, The firmware is already up to date.
- More detail information : https://docs.mobilint.com

Mobilint Ctrl#

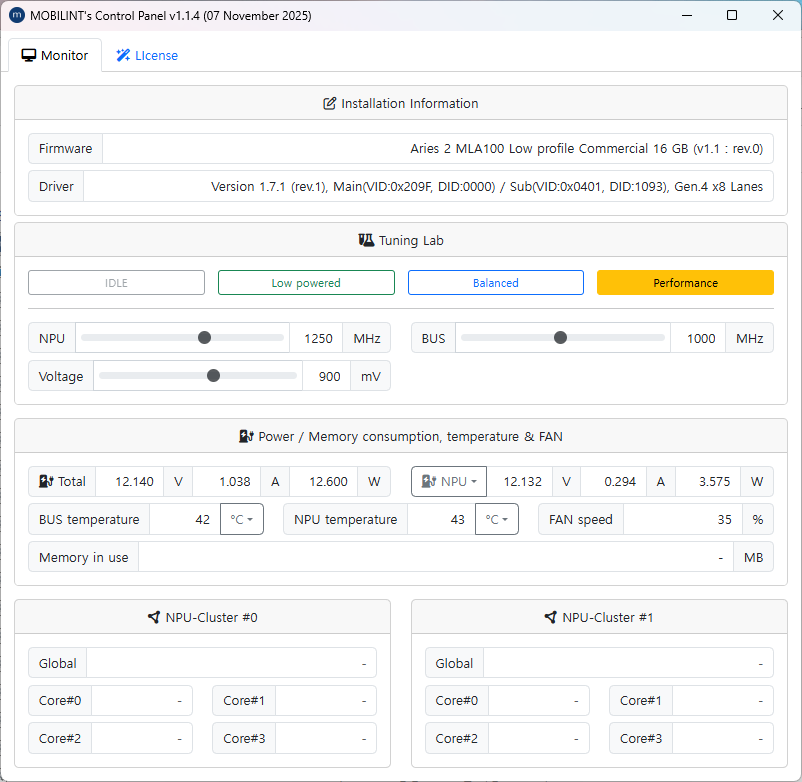

Mobilint_ctrl

As shown in the image above, it displays various status information about the NPU.
